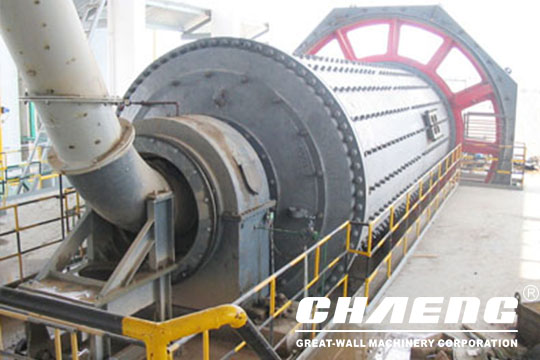

Air Swept Ball Mill

Application Cement Plant
Capacity 21-155 t/h
Motor Power 800-3550 kw
Fineness 3000~4000 cm²/g

Overview

The air swept ball mill has the similar structure with the ordinary mill,but input size and output size is less,and most of the materials power is supported by wind

Features

1.Feature

1. Air swept ball mill is an efficient tool for grinding many materials into fine powder.

2. The Air swept ball mill is used to grind many kinds of mine and other materials, or to select the mine.

3. Air swept ball mill is widely used in building material, and chemical industry.

4. There are two ways of grinding: The dry way and the wet way.

5. Air swept Ball Mill can be divided into tabular type and flowing type according to differentexpelling mine.

6. To use the Air swept Ball Mill, the material to be ground is loaded into the neoprene barrel that contains grinding

media.

7. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush

the product into fine powder over a period of several hours.

8. The longer the Air swept ball mil runs, the finer the powder will be.

9. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the

Air swept Ball Mill runs.

10. Our overflow ball mills have been used to grind glass, powder food products, create custom varnishes,

make ceramic glaze, powder various chemicals.

2. structure

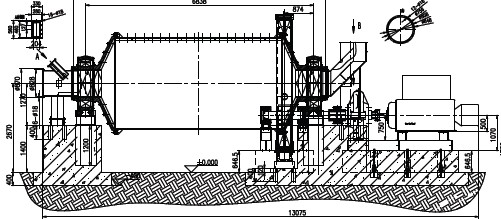

The Air swept ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
