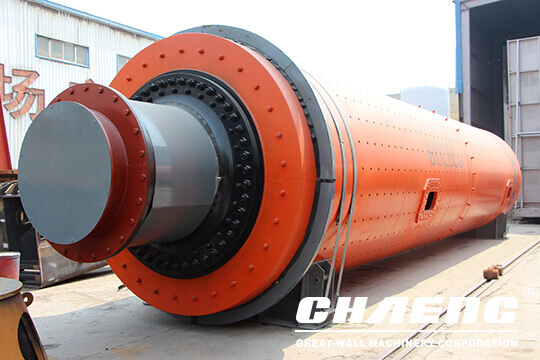

Ball Mill

Application Cement Plant, Clinker Grinding Unit, Steel Mill, Quicklime Plant
Capacity 21-155 t/h
Motor Power 800-3550 kw
Fineness 3000~4000 cm²/g

Overview

Ball Mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.

Features

The performance advantage of ball mill

1. The double slipper ball mill of Great Wall Machinery. It is the first product solving the problem that the temperature is too high to continue running. It won the national utility model patent. The patent number is ZL201020285841.9. Many examples has proved that, this equipment can run steady for a long term.

2. The main parts like hollow shaft, gear wheel and so on, all of them are individual produced by the casting factory of Great Wall Machinery. It takes the short production with high efficiency.

3. Our strength ability of machining can ensure the equipment quality and delivery date.

Working principle

1. This ball mill, a horizontal type and tubular running device, has two chamber. This machine is grid type. The material enters first warehouse spirally and evenly along the input material hollow axis by input material device.

2. In this chamber, there is a ladder scaleboard or ripple scaleboard, and different specification steel balls. When shell rotates and it produces centrifugal force. At this time, steel balls will be carried to certain height and falls down to make the material heavy impact and grinded.

3. After being grinded coarsely in the first chamber, material enters second chamber for regrinding with the steel ball and scaleboard. At the end, the powder is discharged by output material board and the final products are completed.ball mill.gif

Application

Ball mill is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries. It is widely used in Cement Plant, Clinker Grinding Unit, Quicklime Plant, Thermal Power Plant, Steel Mill, Mining etc.

Specifications
