Vertical Raw Mill

Application Cement Plant, Clinker Grinding Unit, Thermal Power Plant, Steel Mill, Mining
Capacity 20-720 t/h
Motor Power 800-2800 kW
Fineness 80μmR 12-15%

Overview

Vertical raw mill is a type of industrial equipment used to crush or grind materials into small particles.

Features

Introduction :

Vertical raw mill is a type of industrial equipment used to crush or grind materials into small particles. Vertical roller mills are widely used in the concrete and mining fields, and are also used to process gypsum. These units can process both raw and recycled materials, while helping to reduce waste and preserve virgin supplies of these materials.

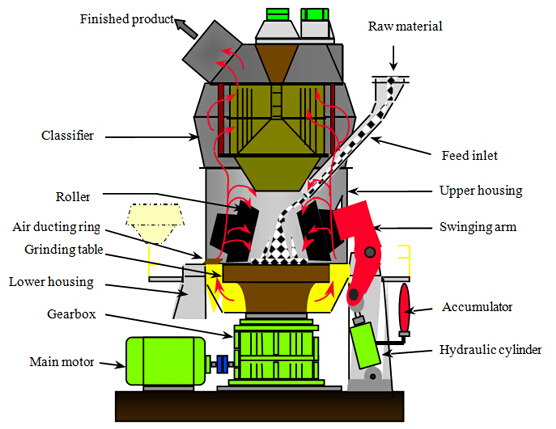

vertical roller mill.jpg

  • High-performance separator and optimised airflow ensure high separation efficiency and low pressure loss for energy saving.

  • Unusually large rollers permit coarse feed and ensure a thick grinding bed for maximum uptime.

  • All impact forces and dynamic reactions are small and therefore easy to accommodate – prevents vertical mill stops.

  • Segmented wear parts for table and rollers use the most wear-resistant materials and hardfacing for long life.

  • Reversible roller segments ensure high material utilisation.

  • External circulation reduce power consumption of fan.

  • Feed sluice ensures air flow and steady feed flow for minimum power consumption and optimum mill production.

  • The vertical raw mill is easily adaptable to grind wet materials.
