Chaeng single cylinder hydraulic cone crusher

  • By
  • Nov 21, 2019  UTC+8
  • Views:
  • Tags: cone crusher stone crusher

Capacity: 36-2181t/h

Finished size:6-38mm

Chaeng Single cylinder hydraulic cone crusher is a new type of crusher independently developed by CHAENG on the basis of summing up the requirements for sandstone aggregates in cement and concrete for more than 60 years. It can break the materials with medium hard strength and above such as iron ore, river pebbles, granite, etc., and it is the ideal equipment for medium and fine crushing.

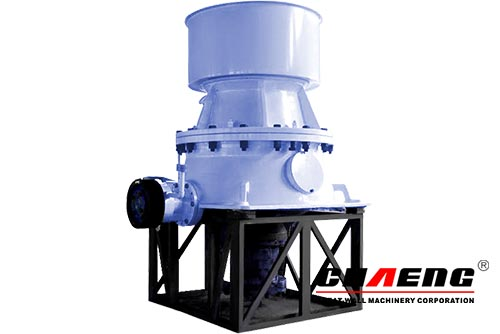

stone cone crusher

Single cylinder hydraulic cone crusher is driven by the motor, and the transmission shaft rotates under the action of belt pulley and triangular belt. Next, the transmission shaft drives the eccentric sleeve to make it rotate around the axis. Meanwhile, the eccentric sleeve forces the movable cone to do rotary oscillating motion. This movement makes the movable cone and fixed cone sometimes close to, sometimes far away from the rolling wall. Materials are continuously shocked, squeezed and crushed in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.

specifacation of our cone crusher

Model Discharge size Installed power Min. capacity Max. capacity Chamber Auxiliary classification
GCPF500 32mm 400Kw 400t/h 530t/h C2 thick HP Hydraulic
GCPF300 16mm 220Kw 170t/h 215t/h M middle HP Hydraulic
GCPF500 38mm 400kw 425t/h 580t/h C1 Super thick HP Hydraulic
GCPF300 22mm 220Kw 220t/h 260t/h C2 thick HP Hydraulic
GCPF440 25-51mm 220Kw 195t/h 486t/h S1 middle thick Single Cylinder Hydraulic
GCPF440 29-51mm 220Kw 225t/h 511t/h S1 middle thick Single Cylinder Hydraulic
GCPF440 35-54mm 220Kw 267t/h 601t/h S1 Super thick Single Cylinder Hydraulic
GCPF660 38mm 315Kw 318t/h 895t/h S2 middle thick Single Cylinder Hydraulic
GCPF660 41mm 315Kw 345t/h 1050t/h S1 middle thick Single Cylinder Hydraulic
