3000 t/d Cement Plant

Application Cement Plant
Annual Output 900,000 tons
Process Type New Dry Process
Blaine Fineness 3300-3800 cm²/g

Overview

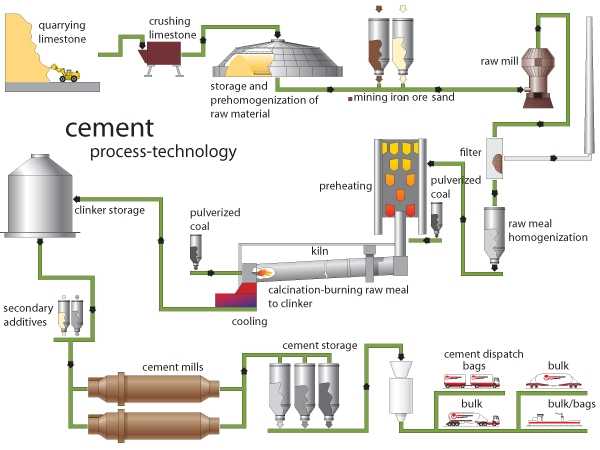

Xinxiang Great Wall Machinery provides turnkey basis service globally with everything that cement plants need We provide service include engineering, manufacturing, procurement, installation, debugging and training for 3000 t d cement plant project The equipment is composed of the low-resistance and high-efficiency five-stage preheating and decomposition system, dry process φ4×60m rotary kiln, inflatable beam grate cooler, advanced vertical roller mill grinding system and DCS automatic control system

Features

Vertical mill for Raw Material Preparation

Raw material preparation uses GRMR40.41 vertical mill that developed by Great Wall Machinery. GRMR40.41 vertical mill is a kind of grinding equipment with these advantages: simple process, strong drying ability, safe and reliable operation, high grinding efficiency, low power consumption, easy maintenance and short debugging cycle, etc.

Clinker burning system with lower energy and heat consumption

This production line adopts advanced raw preheating and precalcining system, reducing the heat consumption and energy consumption effectively in clinker calcined phase. The clinker has better performance, and is easier to grind. Exhaust gases from the preheater enters into the mill, which both saves energy and reduces environmental pollution.

Efficient cement mill producing high quality cement

The specific surface of cement produced by cement grinding mill φ4.2×13m is 3300-3800 cm²/g, which meets even beyond the common standard. In the process of using, the cement has the advantage of quick hydration reaction and fast strength development.

Good pollution control, greening of factory.

This production line fully considers waste and dust treatment in the design process. We install bag filter and electrical deduster in the main stage of dust treatment, reducing the dust in the air effectively. The whole factory area is fully greening, bringing a good working condition.


Configuration
